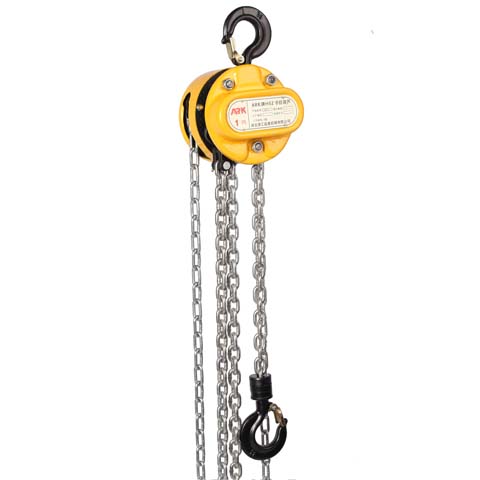

HSZ-T chain block
Features :
Safe,reliable in operation with minimum maintenance
High efficiency and small hand pull
Light weight and easy handing
Fine appearance with small size
Durable in service
SPECIFICATIONS
| Model | Rated Load (kg) | Lifting Height(m) | Test Load (Ton) | Pull Force(N) | Dimension of Load chain | Net Weight(kg) |
| T-1 | 1000 | 3 | 1.50 | 31 | 6*18 | 10 |
| T-2 | 2000 | 3 | 2.50 | 34 | 6*18 | 14 |
| T-3 | 3000 | 3 | 4.50 | 35 | 8*24 | 24 |
| T-5 | 5000 | 3 | 7.50 | 39 | 10*30 | 36 |
| T-10 | 10000 | 3 | 12.50 | 41 | 10*30 | 68 |
| T-20 | 20000 | 3 | 25.00 | 41×2 | 10*30 | 150 |
| T-30 | 30000 | 3 | 77.50 | 47×2 | 10*30 | 240 |
