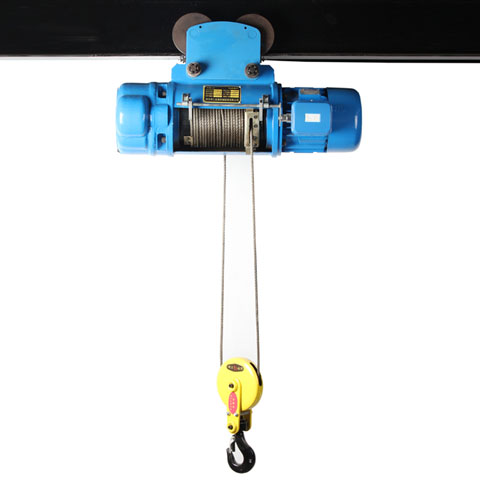

CD1/MD1 wire rope electric hoist

Features :

  • Tight structure, light weight, small volume, wide common use and convenient operation etc.

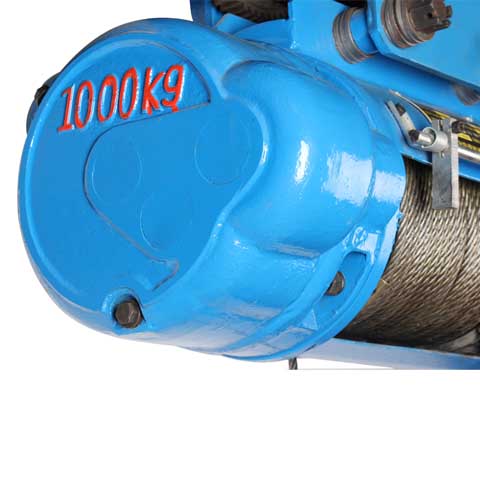

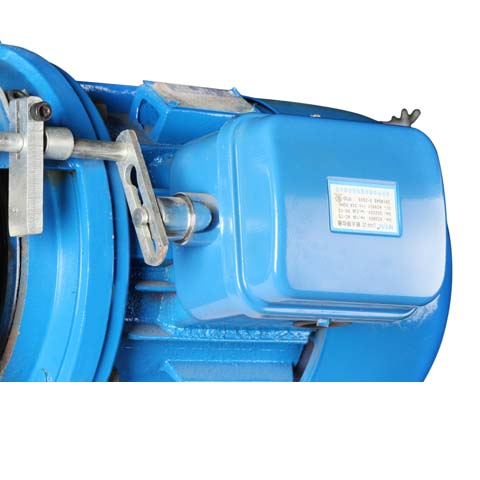

  • The reducer adopts hard gear surface transmission design. It has long life and high mechanical efficiency. Conic rotor brake motor which has safety limiter device in both up and down directions are equipped.

  • Widely used to hoist heavy objects or installed on the straight or curve I-steel beam of single-girder cranes.

  • They can also be used together with Electric Hoist Double-girder, gantry crane and slewing cranes. All the above has made the electric hoists common in industrial and mine enterprises, railway, wharves and warehouses.

Get a quote

SPECIFICATIONS

Load capacity0.5123510
Hoisting Height(m)6 9 12 18 24 306 9 12 18 24 306 9 12 18 24 306 9 12 18 24 306 9 12 18 24 306 9 12 18 24 30
Operating speed20;20/6.7
30;30/10		20;20/6.7
30;30/10		20;20/6.7
30;30/10		20;20/6.7
30;30/10		20;20/6.7
30;30/10		20;20/6.7
30;30/10
chain wheel2/12/12/12/12/14/2
 Hoisting  Motor powerzdy11-4(0.8)zdy22-4(1.5)zdy31-4(3)zdy32-4(4.5)zdy41-4(7.5)zdy51-4(13)

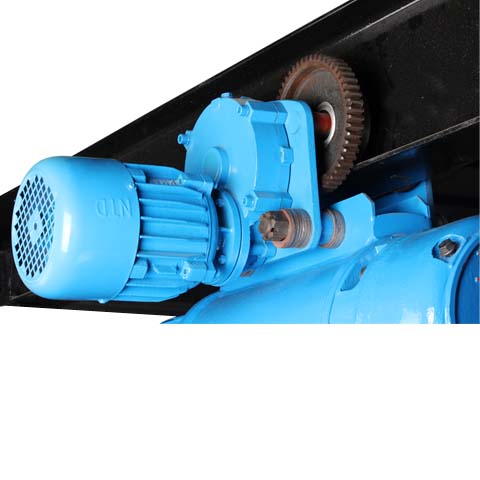

operating  Motor Powerzdy11-4(0.2)zdy11-4(0.2)zdy12-4(0.4)zdy12-4(0.4)zdy21-4(0.8)2*zdy21-4(0.8)
Level of Protectionip44 ip54ip44 ip54ip44 ip54ip44 ip54ip44 ip54ip44 ip54
l-steel track116a-128b116a-128b120a-145b120a-145b125a-163c140a-163c
Minimum running radius1 1 1 1.8 2.5 3.21 1 1.2 1.8 2.5 3.21.2 1.2 1.5 2.0 2.8 3.51.2 1.2 1.5 2.0 2.8 3.51.5 1.5 1.5 2.5 3.0 4.01.5 1.5 1.5 2.5 3.0 4.0
Net weight  (kg)135 140 155 175 185 195180 190 205 220 235 255250 265 300 320 340 360320 340 350 380 410 440590 630 650 700 750 800820 870 960 1015 1090 1125
