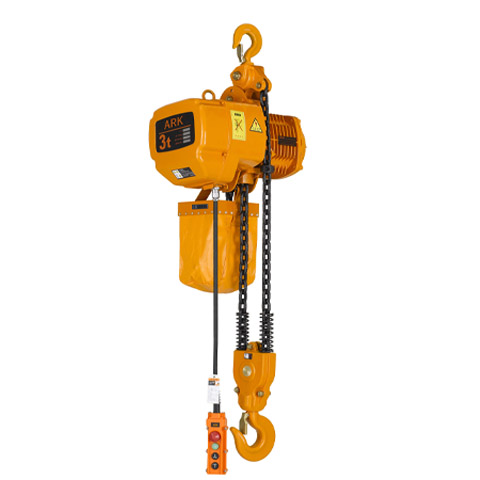

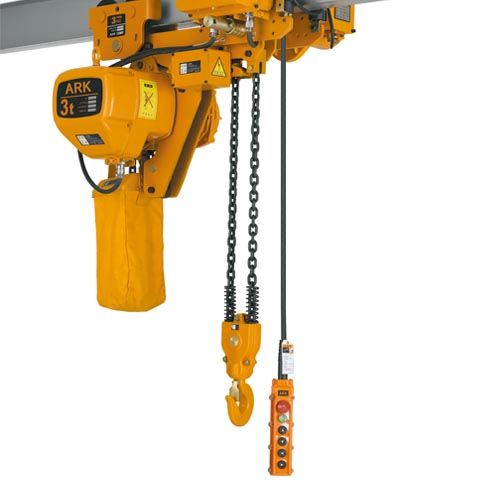

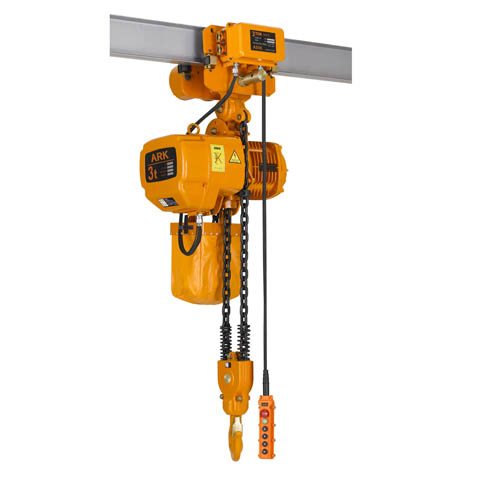

VKL type electric chain hoist with high efficient energy-saving motor,with free break system.
Electric chain hoist top and bottom hooks are fitted with safety latches as standard.
Electric chain hoist drop forged steel suspension and load hooks are heated tread and fracture resistance
Electric chain hoist limit switch device fitted at both top and bottom ends,switching off power automatically to prevent load chain from running out.
| Type | Capacity(Ton) | Unit(mm) | |||||||||||||
| H | A | B | D | E | I | J | P | K | L | N | R | T | Chain | ||
| VKL0.5-01S | 0.5 | 630 | 460 | 230 | 280 | 160 | Φ31 | 100 | 162 | Φ32 | 25 | 17 | 142 | 150 | Φ6.3 |
| VKL01-01S | 1 | 650 | 520 | 260 | 300 | 176 | Φ31 | 111 | 206 | Φ40 | 31 | 24 | 142 | 231 | Φ7.1 |
| VKL01-02S | 1 | 640 | 460 | 230 | 280 | 205 | Φ31 | 111 | 206 | Φ40 | 31 | 24 | 142 | 230 | Φ6.3 |
| VKL02-01S | 2 | 770 | 620 | 310 | 430 | 265 | Φ36 | 127 | 237 | Φ49 | 36 | 30 | 142 | 231 | Φ10.0 |
| VKL02-02S | 2 | 740 | 520 | 260 | 300 | 230 | Φ36 | 127 | 237 | Φ49 | 35 | 30 | 142 | 231 | Φ7.1 |
| VKL03-01S | 3 | 840 | 620 | 310 | 430 | 265 | Φ43 | 140 | 265 | Φ59 | 42 | 35 | 142 | 231 | Φ11.2 |
| VKL03-02S | 3 | 940 | 620 | 310 | 430 | 320 | Φ43 | 140 | 265 | Φ59 | 42 | 35 | 142 | 231 | Φ10.0 |
| VKL03-03S | 3 | 920 | 520 | 260 | 350 | 280 | Φ43 | 140 | 265 | Φ59 | 42 | 35 | 142 | 231 | Φ7.1 |
| VKL05-02S | 5 | 1015 | 620 | 310 | 430 | 325 | Φ54 | 156 | 296 | Φ60 | 45 | 43 | 142 | 231 | Φ11.2 |
| Type | Capacity(_Ton) | Lifting Height(m) | Lifting Speed(m/min) | Lifting motor | Qperating motor | I-Beam(mm) | |||||||||
| Power(kg) | Rotation Speed(r/min) | Phases | Voltage(v) | Frequency ( HZ/S) | Power(kw) | Rotation Spedd(r/min) | Operating speed(m/min) | Phases | Voltage(v) | Frequency(Hz/s) | |||||
| VKL0.5-01S | 0.5 | 3/9 | 7.2 | 1.1 | 1440 | 3 | 220-240 | 50/60 | 0.2 | 1440 | 14 | 3 | 220-440 | 50/60 | 70-130 |
| VKL01-01S | 1 | 3/9 | 6.8 | 1.5 | 1440 | 3 | 220-240 | 50/60 | 0.4 | 1440 | 10/20 | 3 | 220-240 | 50/60 | 80-160 |
| VKL01-02S | 1 | 3/9 | 3.6 | 1.1 | 1440 | 3 | 220-240 | 50/60 | 0.4 | 1440 | 10/20 | 3 | 220-240 | 50/60 | 80-160 |
| VKL02-01S | 2 | 3/9 | 6.6 | 3.0 | 1440 | 3 | 220-240 | 50/60 | 0.4 | 1440 | 10/20 | 3 | 220-240 | 50/60 | 82-178 |
| VKL02-02S | 2 | 3/9 | 3.4 | 1.5 | 1440 | 3 | 220-240 | 50/60 | 0.4 | 1440 | 10/20 | 3 | 220-240 | 50/60 | 82-178 |
| VKL03-01S | 3 | 3/9 | 5.6 | 3.0 | 1440 | 3 | 220-240 | 50/60 | 0.4 | 1440 | 10/20 | 3 | 220-240 | 50/60 | 100-180 |
| VKL03-02S | 3 | 3/9 | 3.3 | 3.0 | 1440 | 3 | 220-240 | 50/60 | 0.4 | 1440 | 11/21 | 3 | 220-240 | 50/60 | 100-180 |
| VKL03-03S | 3 | 3/9 | 2.2 | 1.5 | 1440 | 3 | 220-240 | 50/60 | 0.4 | 1440 | 11/21 | 3 | 220-240 | 50/60 | 100-180 |
| VKL05-02S | 5 | 3/9 | 2.8 | 3.0 | 1440 | 3 | 220-240 | 50/60 | 0.75 | 1440 | 10/20 | 3 | 220-240 | 50/60 | 110-180 |
