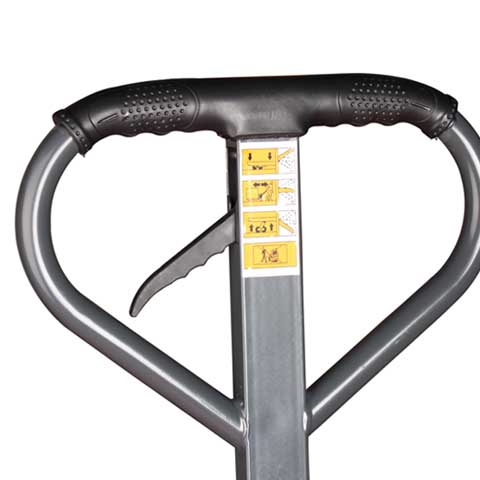

Three-position control operation handle

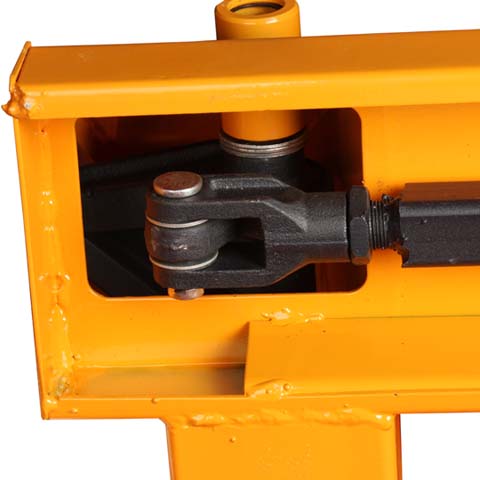

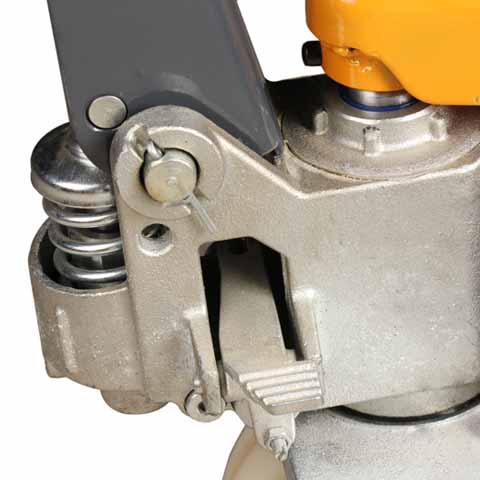

Welded pump, oil return device and safety relief valve

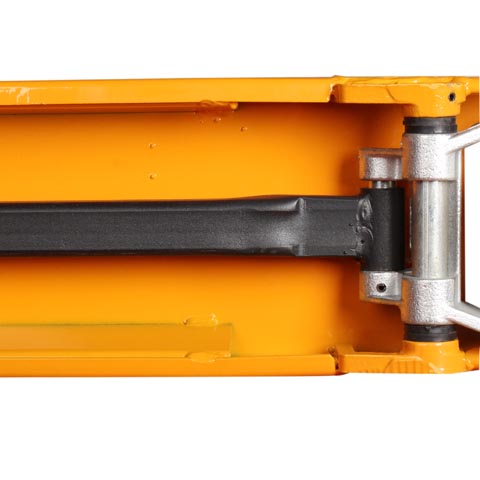

Strengthen frame with high balance
Manual hydraulic pump to achieve adjustable lowering speed

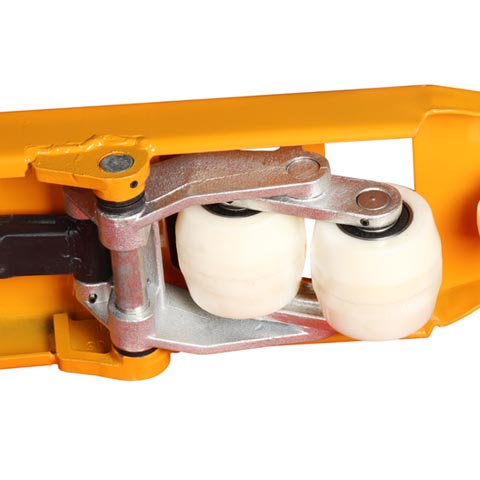

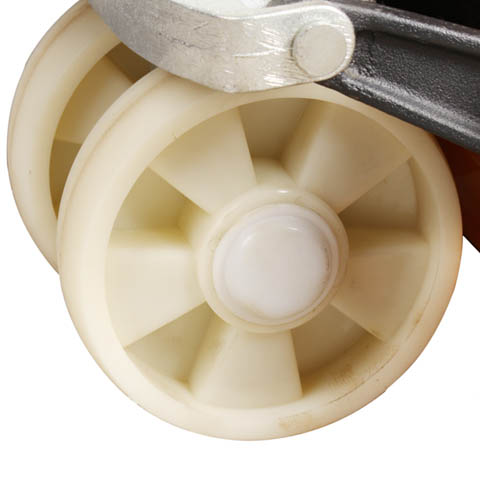

Optional wheel material, nylon, polyurethane, steel
Steady performance, convenient operation, flexible running, pure manually-operated without spark or electromagnetic
| Model | Welded 2T | Welded 3T | Integrated 3T | Integrated 5T |
| Rated Load (kg) | 2000 | 3000 | 3000 | 5000 |
| Min. Height (mm) | 85 | 85 | 85 | 90 |
| Max. Lifting Height (mm) | 200 | 200 | 200 | 200 |
| Steering Wheel (mm) | 180*50 | 180*50 | 180*50 | 180*50 |
| Fork Wheel (mm) | 80*70 | 80*70 | 80*70 | 80*68 |
| Overall Height(mm) | 1220 | 1220 | 1220 | 1240 |
| Overall Length(mm) | 1560 | 1560 | 1560 | 1600 |
| Nominal Length (mm) | 1200 | 1200 | 1200 | 1200 |
| Nominal Width (mm) | 550 | 685 | 550/685 | 685 |
| Fork Size W*H (mm) | 150/55 | 160/65 | 160/65 | 180/65 |
| Weight (kg) | 55 | 70 | 68/72 | 140 |
| Ground Clearance (mm) | 25 | 15 | 15 | 25 |
| Overall Dimension | 2270*550*620 | 2360*685*610 | 2260*550*630/2260*685*610 | 2000*685*550 |
| Wheel Material | Nylon/PU | Nylon/PU | Nylon/PU | Nylon/PU |
