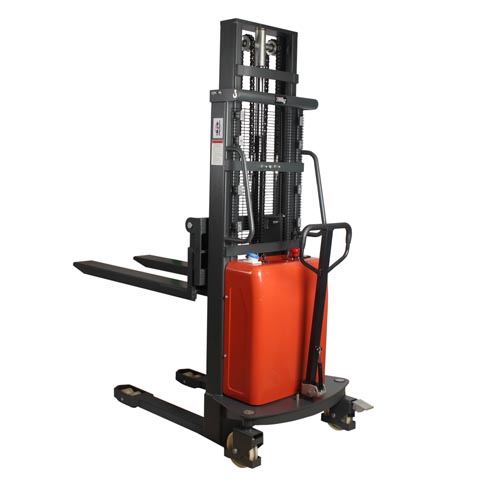

Semi-electric forklift-Spn/Spm

Features :

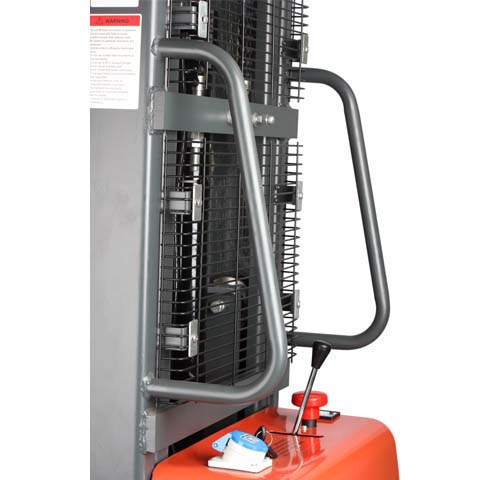

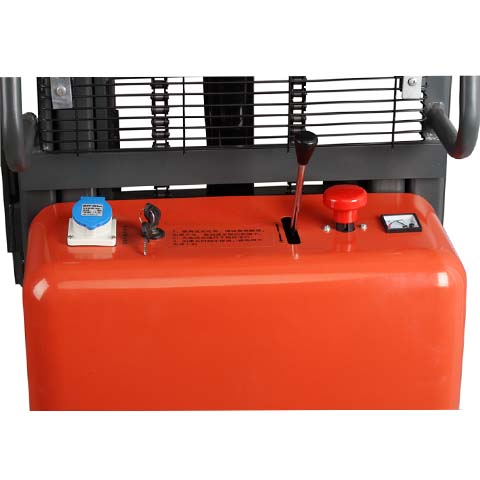

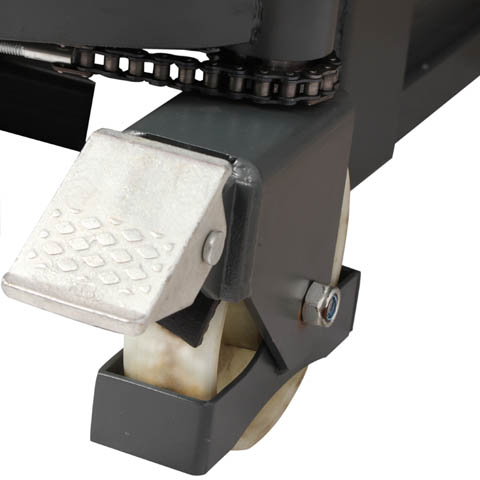

  • U type mast fitted with braking and emergency power-off switch

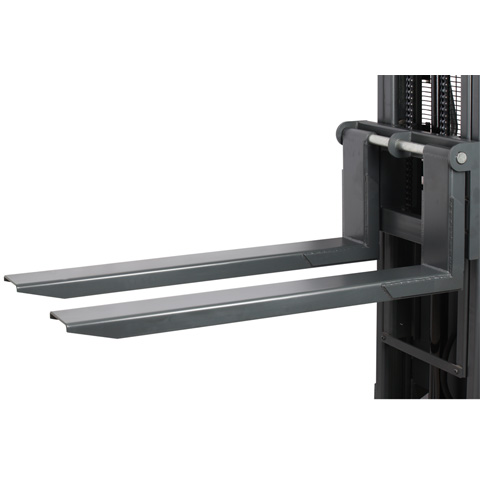

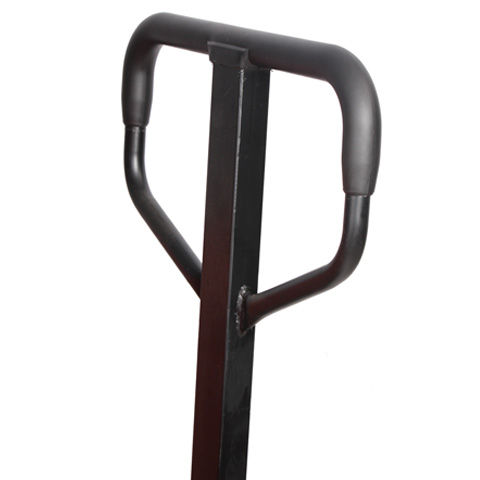

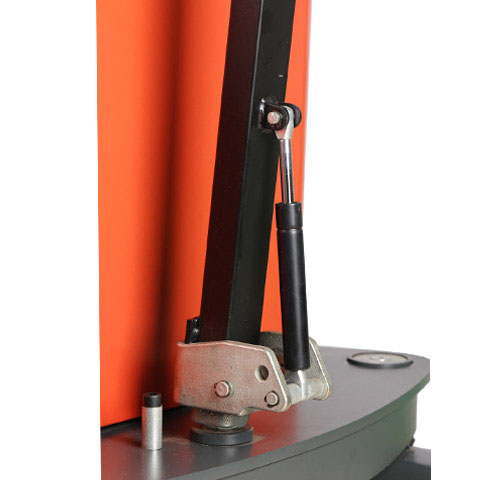

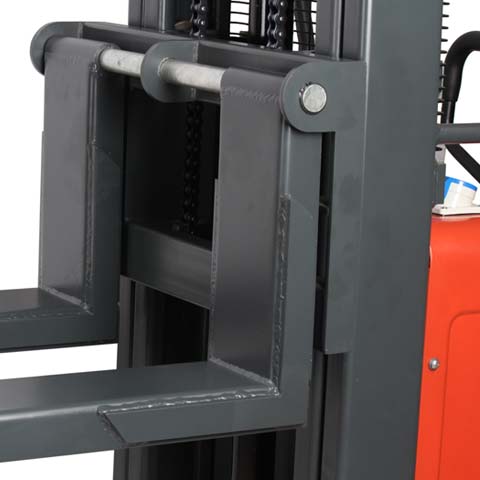

  • Gas spring handle with rubber coating, thickened fork steel, wide load wheels

  • Comfortable operation,steady performance, low noise and environment pollution, compact structure, convenient maintenance

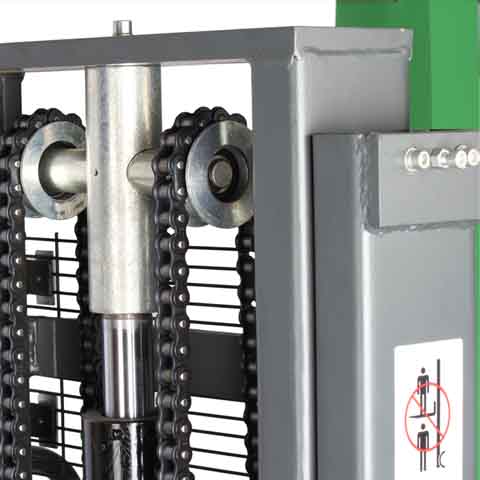

  • Strong lifting system to satisfy most hoisting demands, galvanized as required. Pump hydro cylinder fitted on the heavy duty protection base and chrome plating cylinder.

  • Hydraulic system and bearing needs no maintenance except under extreme situation like high moist or high pressure hose watering, in which all the bearings need lubrication

  • Customized design as clients’require, optional polyurethane wheel available for strict ground protection demands.

Get a quote

SPECIFICATIONS

Model
SPN10SPN15SPN20
Rated lodaKG100015002000
Maximum lifting heigheMM1600/2000/2500/3000/35001600/2000/2500/3000/35001600/2000
Minimum height of forkMM858585
Load centerMM600600600
Fork lengthMM115011501150
Fork sizeMM150×60150×60150×60
Minimum turning radiusMM128012801280
Body lengthMM171017101710
Full width of the bodyMM755755755
The lowest height of the door frameMM1980/1530/1780/2030/22801980/1530/1780/2030/22801980/1530
Fork widthMM300~640300~640300~640
Small wheel sizeMMΦ74×70Φ74×70Φ74×70
Large wheel sizeMMΦ180×50Φ180×50Φ180×50
BatteryV/Ah12/12012/12012/120
Net weightKG345/375/395/420/440365/390/420/450/480390/435
