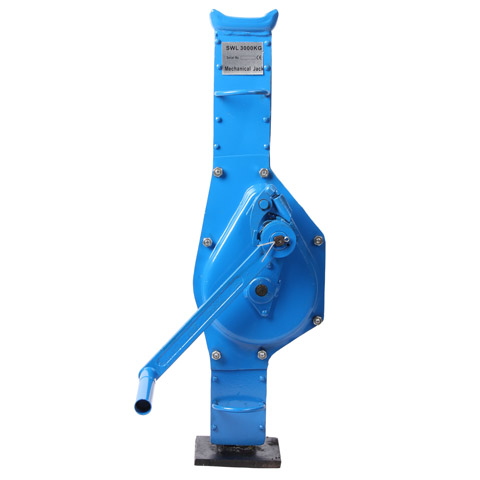

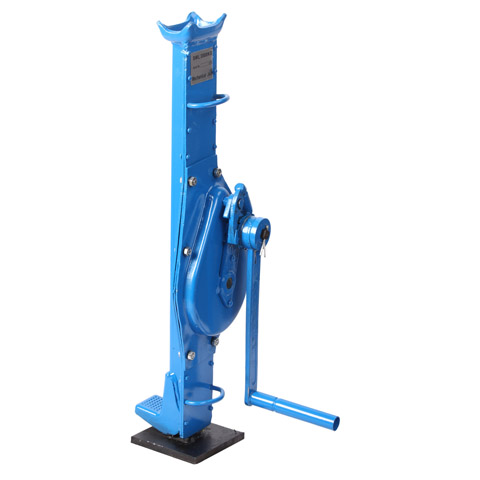

The Mechanical steel jack is designed by mechanical transmission principle.its one of the best lift tools used in repairing and supporting,etc.

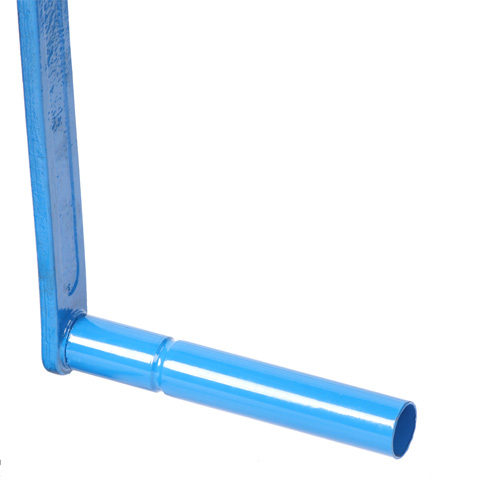

The top-quality all steel structure makes it safe and durable.The compact design with collapsible lever offers easy operation and simple maintenance.
It has two applicable supports stands.The lifting range is much Higher.
| Model | SJ-1.5 | SJ-3 | SJ-5 | SJ-10 | SJ-16 | SJ-20 | SJ-25 | |
| Rated capacity/T | T | 1.5 | 3 | 5 | 10 | 16 | 20 | 25 |
| Test load/KN | (kN) | 16.5 | 33 | 55 | 110 | 176 | 220 | 275 |
| Hand shake to lift load/N | (N) | 190 | 196 | 235 | 431 | 580 | 650 | 750 |
| Dimensions/MM | A | 77 | 83 | 105 | 120 | 153 | 153 | 153 |
| B | 100 | 130 | 145 | 145 | 150 | 150 | 198 | |
| C | 605-905 | 715-1085 | 730-1080 | 795-1160 | 820-1140 | 865-1180 | 950-1360 | |
| D | 55-355 | 60-430 | 70-420 | 83-448 | 135-455 | 125-440 | 110-520 | |
| E | 55 | 60 | 70 | 80 | 85 | 85 | 85 | |
| F | 40 | 45 | 68 | 73 | 90 | 90 | 90 | |
| G | 110 | 135 | 170 | 170 | 182 | 182 | 230 | |
| H | 225 | 285 | 285 | 330 | 360 | 360 | 360 | |
| K | 121 | 200 | 190 | 252 | 275 | 275 | 388 | |
| R | 119 | 140 | 155 | 185 | 210 | 224 | 200 | |
| S | 185 | 230 | 220 | 220 | 202 | 202 | 205 | |
| T | 126 | 126 | 126 | 255 | 255 | 255 | 255 | |
| Net weight/KG | 10.7 | 21.3 | 27 | 47 | 64.5 | 72 | 93 |
