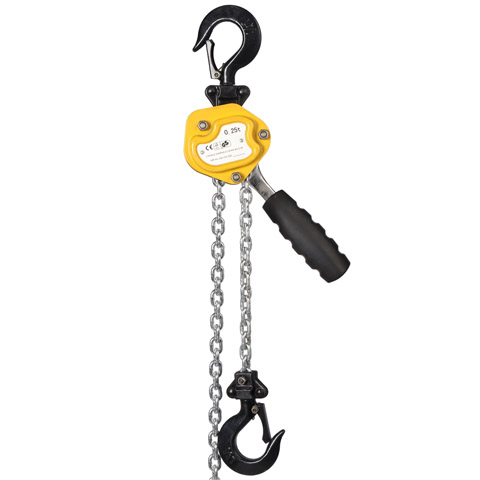

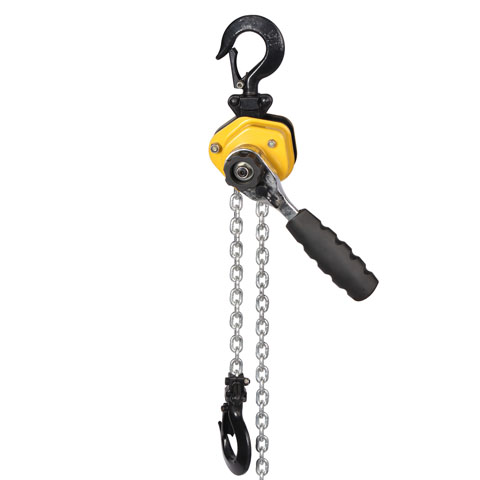

HSH-DC lever block

Features :

  • Compact and light weight design

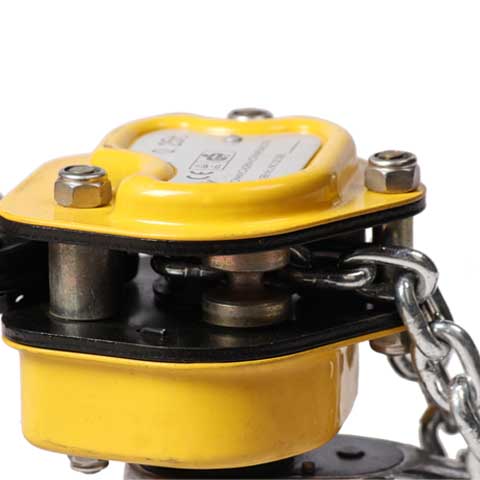

  • High strength, high plasticity aluminum alloy box makes the strength improved greatly and keep the light weight at the same time.

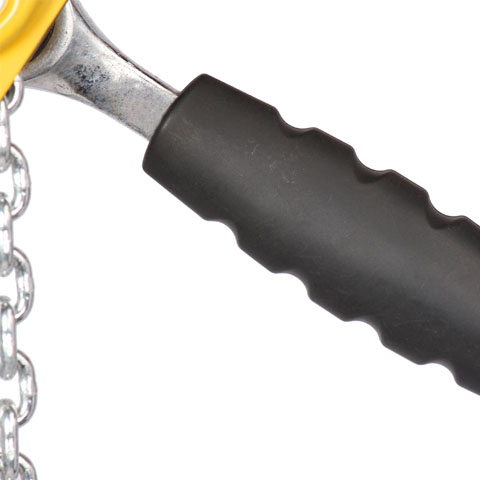

  • Two velocity and the short handle make the operation labor saving.


  • 360 rotating handle provide various operation mode in limited space


  • Sprocket wheel which can rollover freely in narrow position,makes sure the chain to move fast and easily


  • Fully enclosed, automatic control system makes the brake clean and dry and guarantee the work safe and reliable at the same time.


Get a quote

SPECIFICATIONS

Item No.
ARK-750ARK-1500ARK-1500


(single chain)

ARK-3000
Rated loadkg750150015003000
Standard lifting heightm3m3m3m3m
Hand-pull to lift(N)N190190210230
Test load(kg)kg1125225022504500
Chain diameter*Line


Number

mm5*15*26*16*2
N.Wkg68.28.212.9
G.WKg7.6101015.7
Package sizeCm40X19X2747X29X21
Extra weight for one meter


chain added

Kg0.5410.5410.650.65
Dimension(mm)a151151177.5177
b35354245
c209209259259
d261261381381
Hmin373380463443
e135135144144
