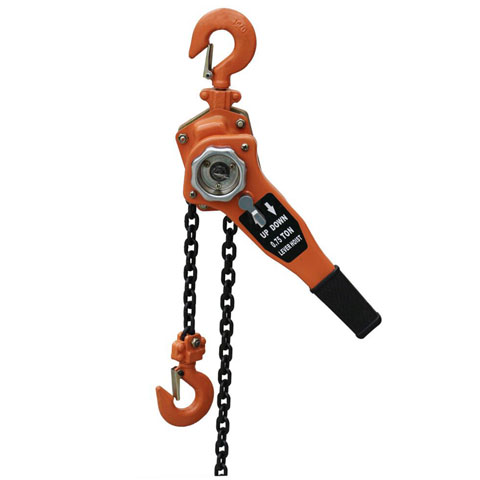

HSH-E lever block
Features :
Safe, reliable and durable
High performance, easy to maintain
Small in volume, portable and light in weight
Small hand pull force and high efficiency
Advanced structure and beautiful appearance.
SPECIFICATIONS
| Model | HSH-E0.75T | HSH-E1.5T | HSHE3T | HSH-E6T | HSH-9T | |
| Capacity(Kg) | 750 | 1500 | 3000 | 6000 | 9000 | |
| Standard lifting height(M) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | |
| Testing load(Kg) | 1125 | 2500 | 4500 | 7500 | 11250 | |
| Force for full load(N) | 250 | 310 | 410 | 420 | 420 | |
| Load chain | No.of load chain | 1 | 1 | 2 | 3 | 4 |
| DIA*pitch | 6*18 | 8*24 | 10*30 | 10*30 | 10*30 | |
| Min Headroom | mm | 440 | 550 | 650 | 650 | 780 |
| Handle Length(mm) | 285 | 410 | 410 | 410 | 410 | |
| N.W/G.W | 6.7 | 11 | 17.5 | 25.5 | 49.8 | |
| Dimension(mm) | A | 155 | 190 | 200 | 200 | 210 |
| B | 120 | 140 | 150 | 150 | 150 | |
| C | 130 | 150 | 200 | 220 | 340 | |
| D | 37 | 45 | 55 | 65 | 75 | |
| E | 35 | 42 | 42 | 45 | 68 | |
