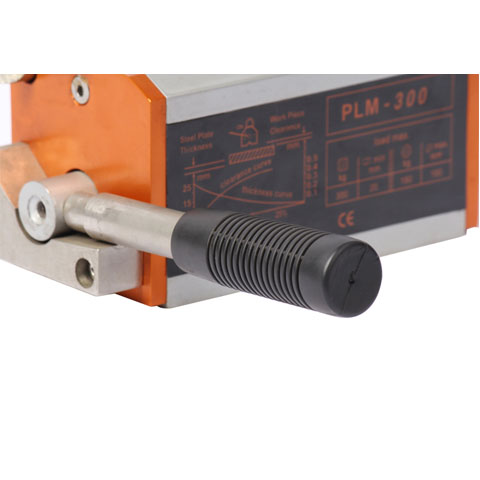

Non-slip operation lever
Nickle plating, longer service life

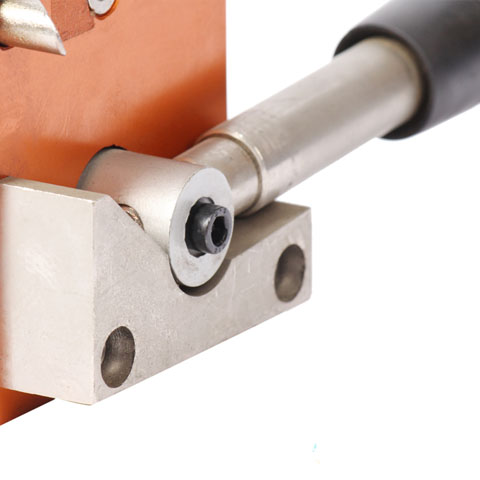

Laborsaving rotation shaft for convenient operation
Strong permanent magnetism to guarantee concentrated and steady magnetic power
Wide ranges of use in metal production, mining, transportation, port and pier.
| Model | Rated load(kg) | Dimensions | Weight | |||||||
| L | B | H1 | H2 | R | F | G | ||||
| Steel plate | Round steel | mm | mm | mm | mm | mm | mm | mm | Kg | |
| PML-100 | 100 | 50 | 137 | 62 | 66 | 45 | 120 | 32 | 21 | 3.5 |
| PML-300 | 300 | 150 | 199 | 90 | 95 | 68 | 175 | 50 | 38 | 11 |
| PML-600 | 600 | 300 | 263 | 115 | 107 | 78 | 225 | 58 | 42 | 21 |
| PML-1000 | 1000 | 500 | 303 | 150 | 140 | 88 | 266 | 64 | 50 | 42 |
| PML-1500 | 1500 | 700 | 348 | 166 | 156 | 102 | 336 | 76 | 56 | 65 |
| PML-2000 | 2000 | 1000 | 394 | 175 | 170 | 102 | 343 | 76 | 56 | 83 |
