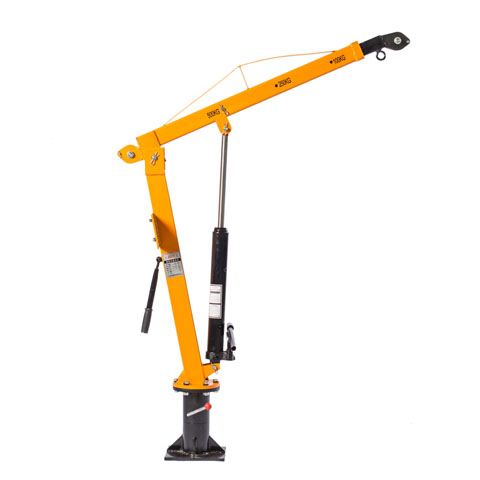

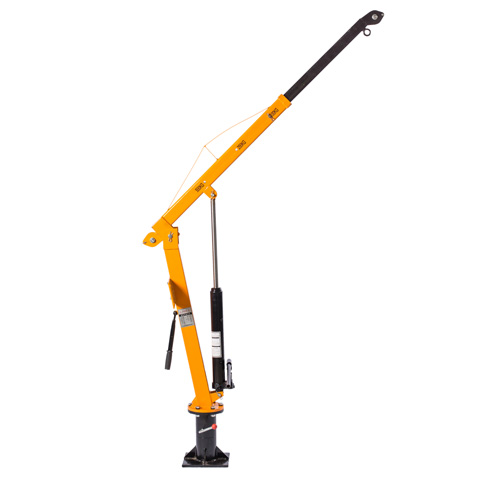

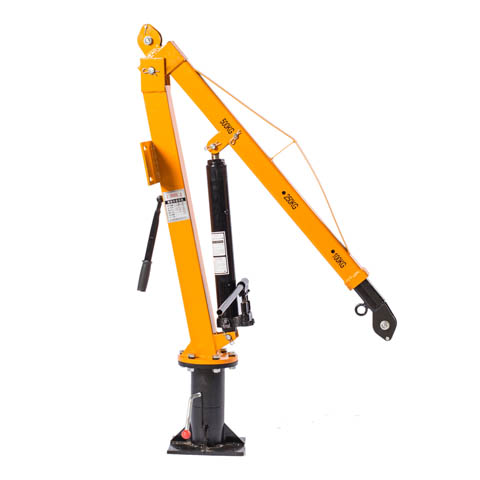

hydraulic vehicle-mounted crane

Features :

  • Compact structure, small footprint,light weight

  • Easy installation and operation, convenient portable body

  • Optional power motor 12V,24V,220V and 500kg, 1000kg or customized lifting load models3.Optional power motor 12V,24V,220V and 500kg, 1000kg or customized lifting load models

  • Widely matched with truck, trailer, rescue vehicle and used in bridgework, lathe, roads maintenance sites

Get a quote

SPECIFICATIONS

Max Single line lifting capacity300kg
Max Double line lifting capacity500kg
Lifting Height max. Std . (base to hook ) 1940mm1940mm
Reach Max (from center to rotation ) 1490mm1490mm
Rotation (continuous ) with Brake :360 Manual360 manual
Line speed with No load3.6m/min single line
Power requirements12V DC 125 amps
Switch Cable4.2m

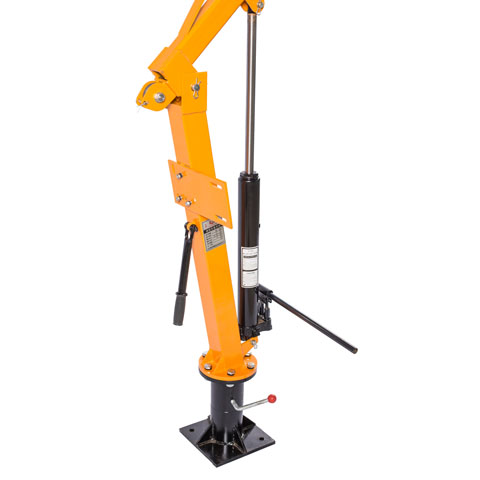

Mounting Base250*250*18mm
Mounting Bolt Hole Pattern170*170mm
FinishPowder Coated
Net Weight of Crane58.5kgs
