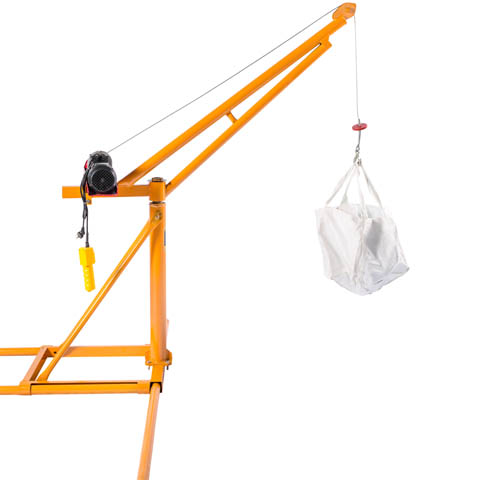

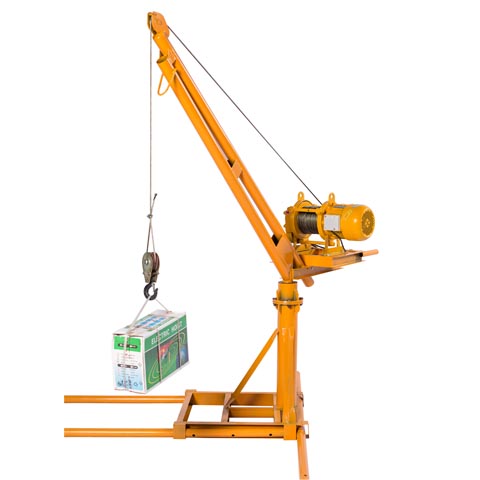

Outdoor 360 Degree Rotation Crane Lift

Features :

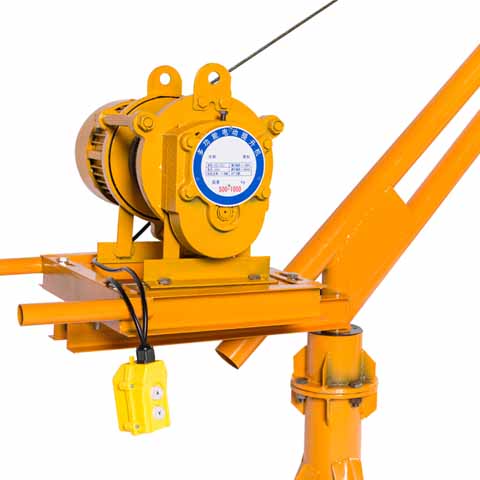

  • Fine appearance,pure copper motor, little noise, power saving

  • Multiple combination with different motors, convenient assembly and dismounting

  • Widely used in high rise building lifting projects, available mounted in huge construction site matched with scaffold

  • Suitable for small constructional engineering as gantry crane and tower crane replacement

Get a quote

SPECIFICATIONS

ModelMotor PowerWire Dia.Work TimeVoltageOverall WeightOperation SpeedMotor Speed
300kg1150W5MM1h220V70KG12m/min1200 r/min
400kg1450W5MM1h220V75KG12m/min1200 r/min
500kg2200W6MM1-2h220V85KG12m/min1200 r/min
300kg800W5MM1-2h380V85KG12m/min1200 r/min
500kg1500W6MM1-2h380V100KG12m/min1200 r/min
Fast-500kg2200W6MM1-2h220V86KG12m/min2400 r/min
Fast-500kg1500W6MM1-2h380V102KG12m/min1800 r/min
