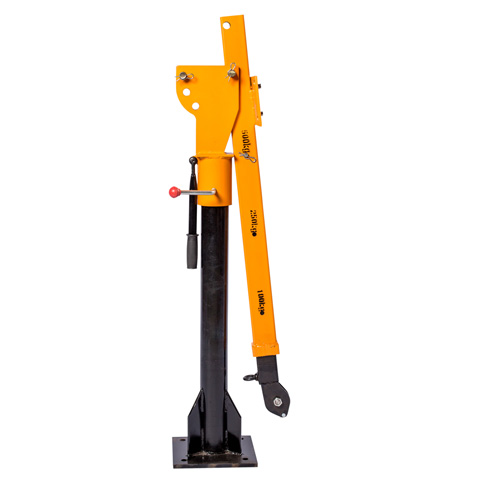

Compact structure, small footprint,light weight
Easy installation and operation, convenient portable body

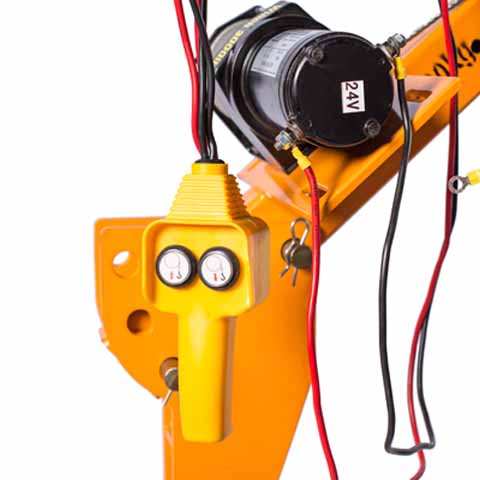

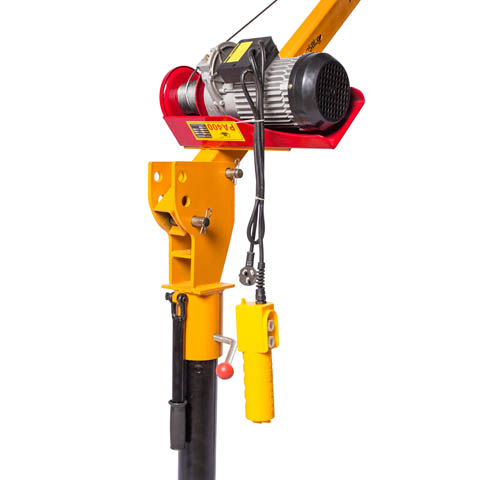

Optional power motor 12V,24V,220V and 500kg, 1000kg or customized lifting load models
Widely matched with truck, trailer, rescue vehicle and used in bridgework, lathe, roads maintenance sites
| Max Single line lifting capacity | 300kg |
| Max Double line lifting capacity | 500kg |
| Lifting Height max. Std . (base to hook ) 1940mm | 1940mm |

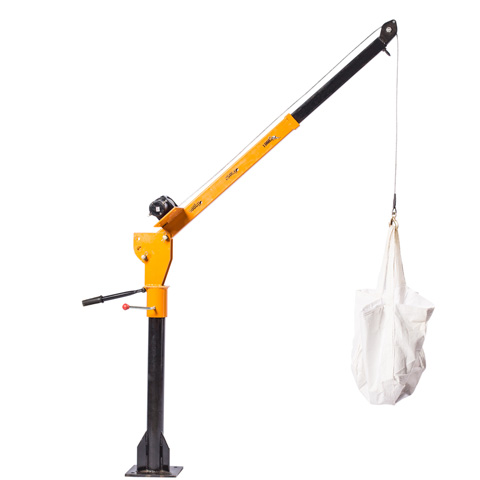

| Reach Max (from center to rotation ) 1490mm | 1490mm |
| Rotation (continuous ) with Brake :360 Manual | 360 manual |
| Line speed with No load | 3.6m/min single line |
| Power requirements | 12V DC 125 amps |
| Switch Cable | 4.2m |

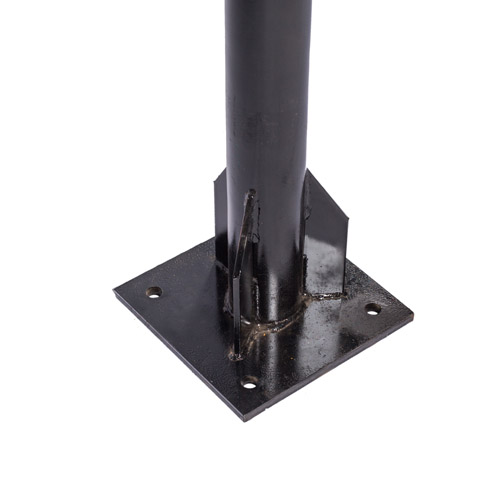

| Mounting Base | 250*250*18mm |
| Mounting Bolt Hole Pattern | 170*170mm |
| Finish | Powder Coated |
| Net Weight of Crane | 58.5kgs |
