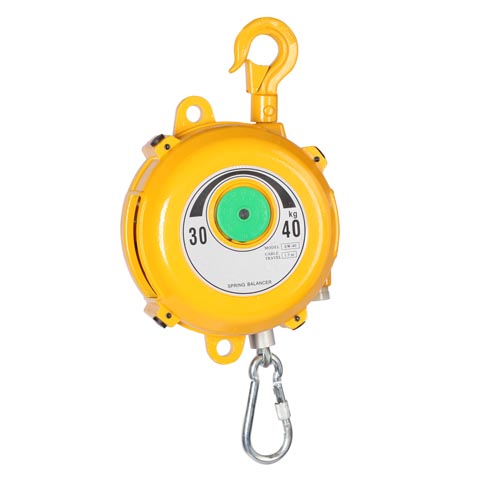

Spring balancer is a tool special for suspending , which can balance with weight of tools, to shift the tools with less fatigue &high efficiency.
It has been widely used for welding product lines of vehicle body, rivet lines, and assembly line of engine, motorcycles and home appliances where the tools must be hung.
It’ll be the ideal choice to reduce the labour intensity and increase the productivity.
| Model | Capacity (kg) | Stroke(m) | Net Weight (kg) |
| HW-3.0 | 1.5-3.0 | 1.9 | 1.6 |
| HW-5.0 | 3.0-5.0 | 1.9 | 1.62 |
| HW-9.0 | 5.0-9.0 | 1.8 | 4.2 |
| HW-15 | 9-15 | 1.8 | 4.5 |
| HW-22 | 15-22 | 1.5-2.8 | 8 |
| HW-30 | 22-30 | 1.5-2.8 | 8.5 |
| HW-40 | 30-40 | 1.5-2.8 | 10 |
| HW-50 | 40-50 | 1.5-2.8 | 10.2 |
| HW-60 | 50-60 | 1.5-2.8 | 10.8 |
| HW-70 | 60-70 | 1.5-2.8 | 11.2 |
| HW-80 | 70-80 | 1.5-2.8 | 12 |
| HW-100 | 80-100 | 1.9-2.8 | 22 |
| HW-120 | 100-120 | 1.9-2.8 | 23 |
| HW-140 | 120-140 | 1.9-2.8 | 24 |
| HW-160 | 140-160 | 1.9-2.8 | 24.5 |
| HW-180 | 160-180 | 1.9-2.8 | 25 |
| HW-200 | 180-200 | 1.9-2.8 | 25.5 |
